Gnuplot Tips

Gnuplot自体は多くのところで紹介されているので、使用例をいくつか挙げてみる。ノイズ負荷の模式図を作る時に作った描画。軸をいじったりする時はunsetコマンドやsetコマンドで設定することになる。

ticsは目盛りを消す、sampleは文字通りサンプル数を増やしてスムーズな描画を行う。

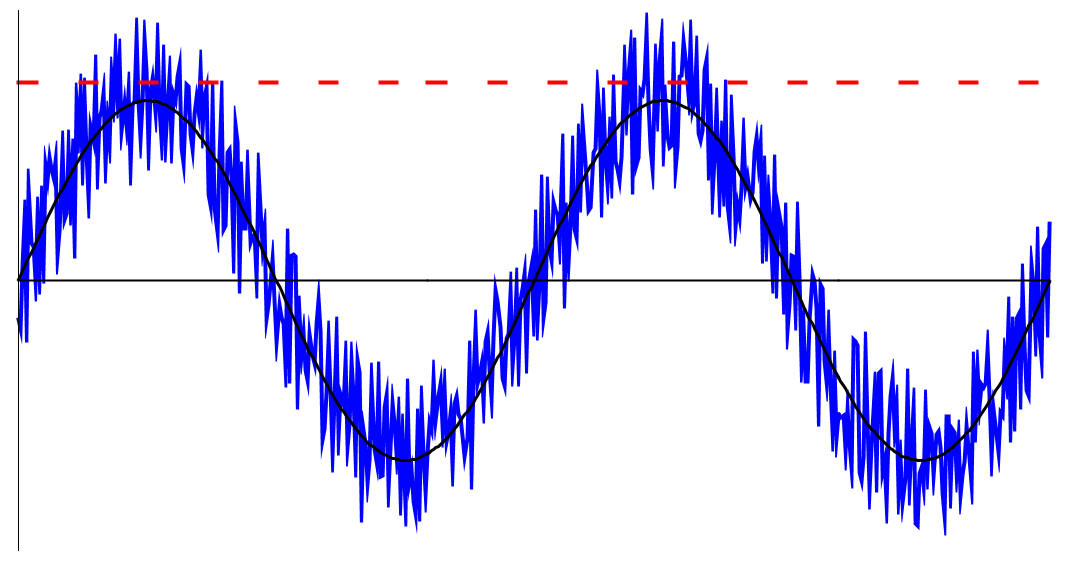

plot [-3.14*2:3.14*2][-1.5:1.5] sin(x)+(rand(0)-0.5)*0.8 \
with lines lw 4 lc rgb "blue", 1.1 \
with lines dt (5,10) lw 4 lc rgb "red" , 0 \
with lines lc black lw 2, sin(x) lc rgb "black" lw 3

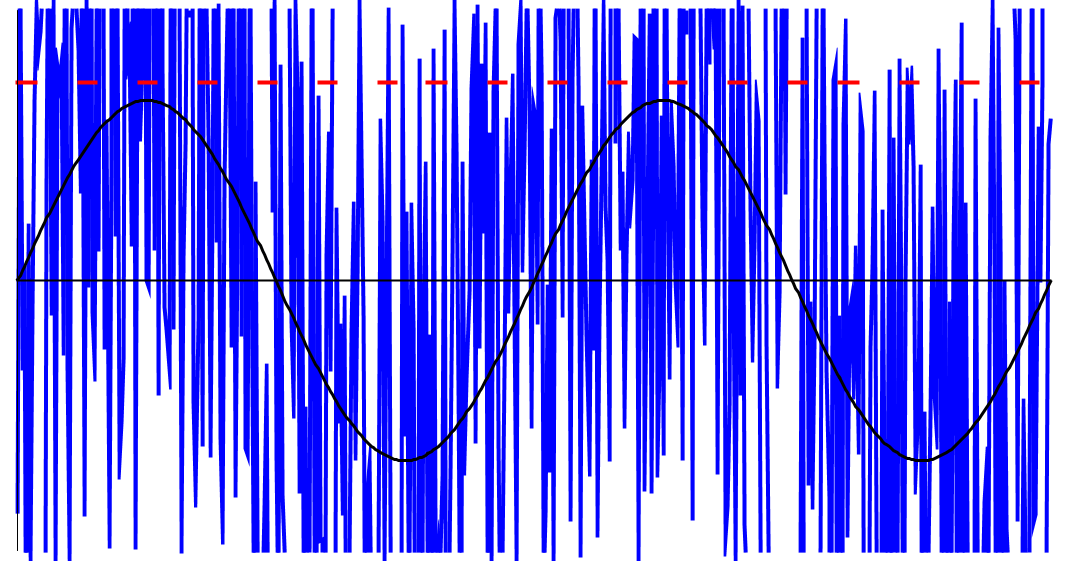

plot [-3.14*2:3.14*2][-1.5:1.5] sin(x)+(rand(0)-0.5)*5.0 \
with lines lw 4 lc rgb "blue", 1.1 \
with lines dt (5,10) lw 4 lc rgb "red" , 0 \
with lines lc black lw 2, sin(x) lc rgb "black" lw 3

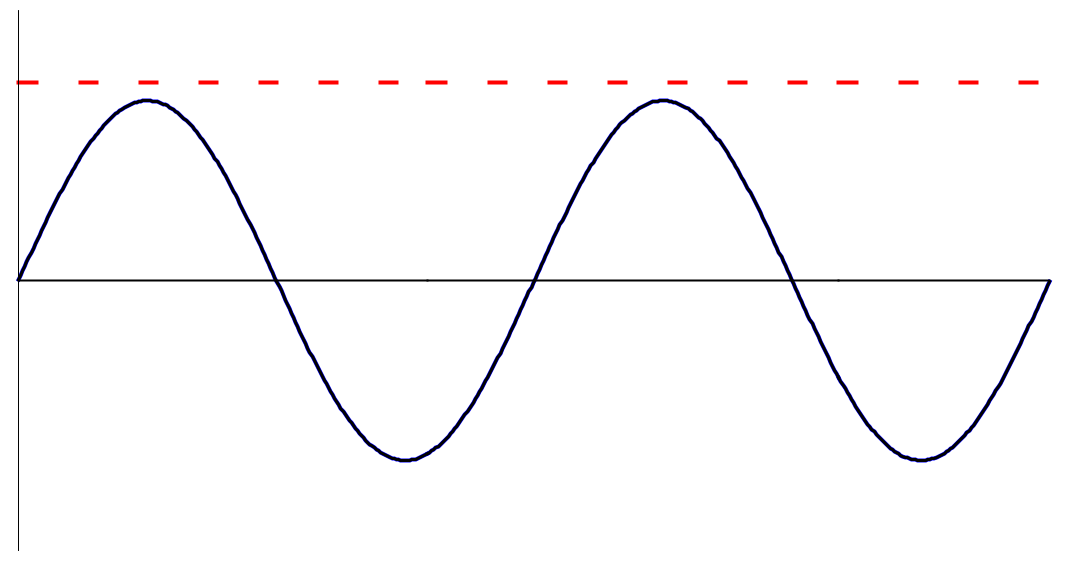

plot [-3.14*2:3.14*2][-1.5:1.5] sin(x)+(rand(0)-0.5)*0.0 \
with lines lw 4 lc rgb "blue", 1.1 \
with lines dt (5,10) lw 4 lc rgb "red" , 0 \
with lines lc black lw 2, sin(x) lc rgb "black" lw 3

Windows版等だとメニューからEMFの出力等を行えるし、コマンドからepsの出力も行える。

Windows版だと、通常のインストールでカレントディレクトリが%USERPROFILE%\Documentsに設定されているので、マイドキュメントにファイルが出力される。戻すときは、windowsかx11にターミナルを戻せば良い。
