スイッチの作成

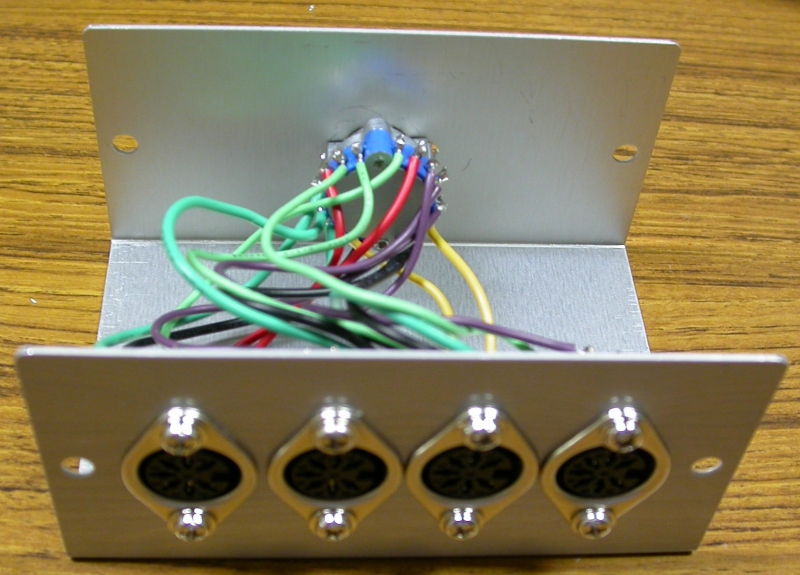

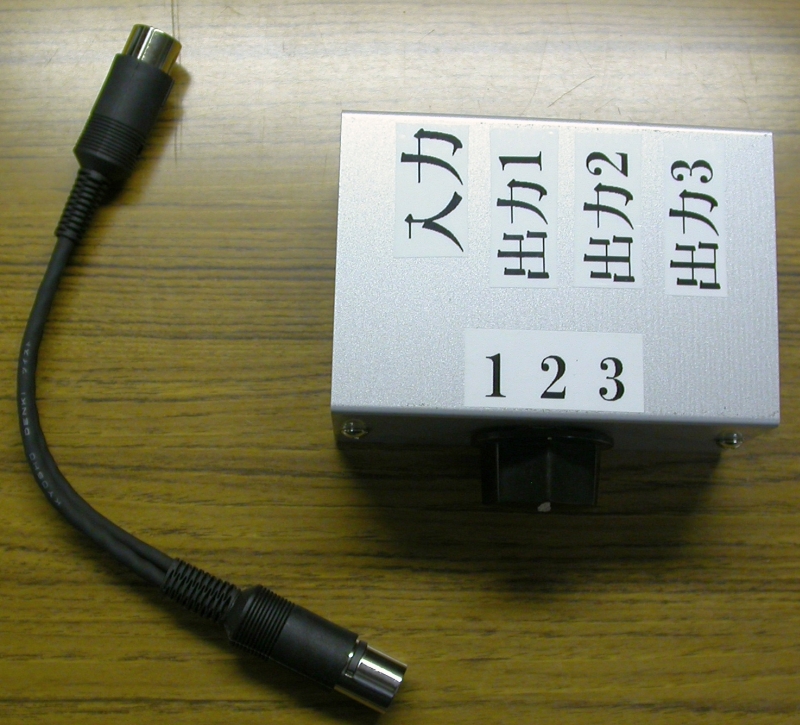

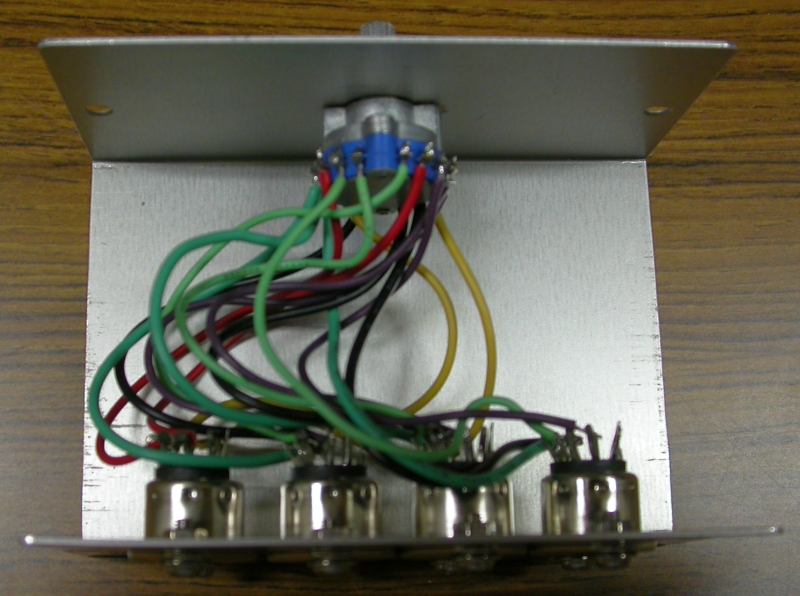

DIN 5pinコネクタ

検査で使用するヘッドホンのコネクタは通常の6.5mmプラグとやや異なることが多く、汎用の切替機が使えないことが多い。備忘録として掲載する。

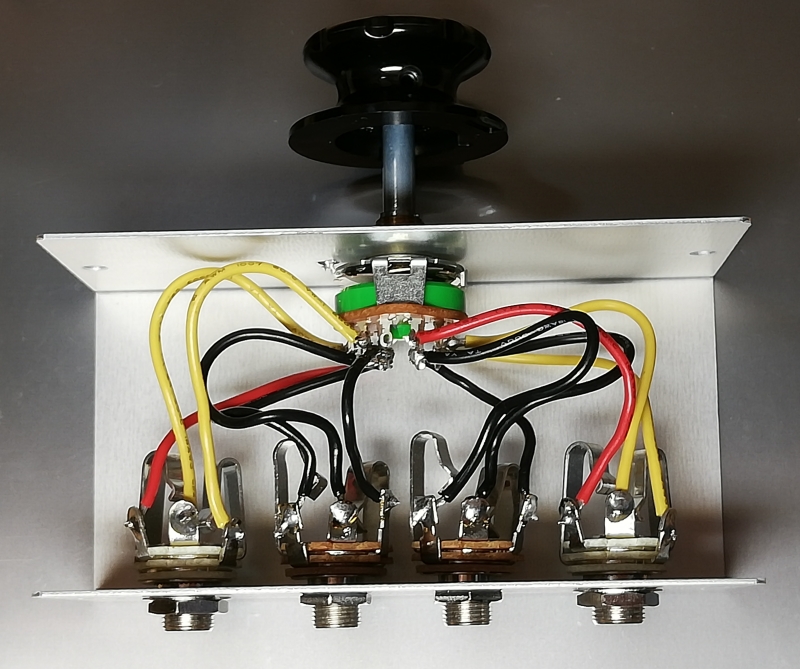

6.5mm ジャック (female) プラグ (male)

グランドが共通なので、6回路でなくて4回路でも良いし、きちんと浮かせるためには、グランドが筐体と絶縁されるタイプのジャックを使う方が良い。
